LED Pixel Strip

  • UCS2904 5050RGBW 60LEDS 24V
UCS2904 5050RGBW 60LEDS 24V

UCS2904 5050RGBW 60LEDS 24V

UCS2904B Product Parameter:

P/N

Beam angle

VCC

Power/M

LED Qty/m

Size

IC chip

PCB Color

Pixel

IP Rate

MDR-CLUCS2904B-6RGBW

120 deg

DC12V

18W

5050 RGBW 60leds/m

5000*10mm

UCS2904B

White/ Black

10 pixels

IP20/IP65/IP68

Features:

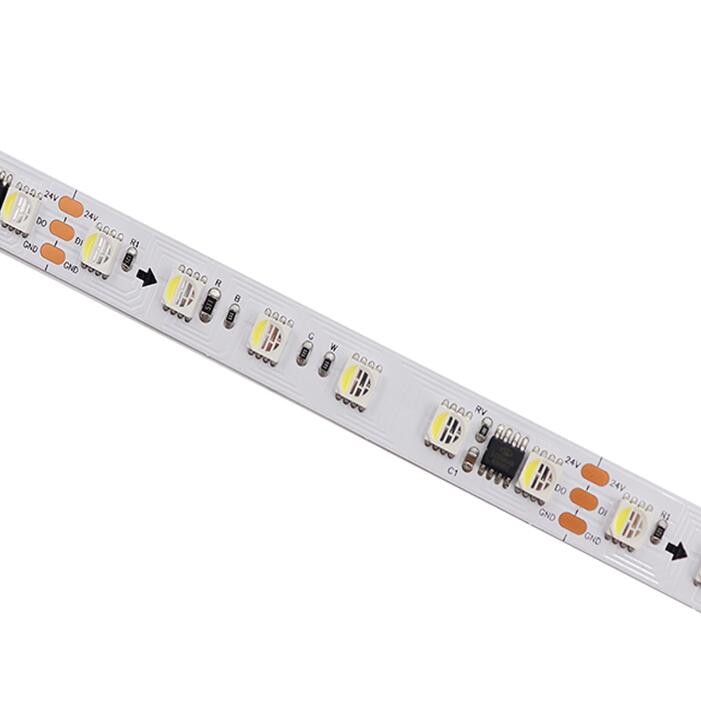

1.This addressable led strip consist of 5 meters in a reel,60 pcs RGBW led per meter, three leds one group, and each group with a UCS2904B IC.
2.Flexible PCB: White color, PCB width 10mm.
3.Waterproof-silicon tube coating: W14*H4mm.
4.DC12 v available,constant voltage operation.
5.Voltage drop from start to end of 5M +/- 2v.
6.3pin JST SM connector(non-waterproof) soldered in each end of strip, Extra 2 single wire for powering in input side.
7.Control: SD controller,DMX decoder,Artnet etc.
8.Customized length available.
Application:

• City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
• Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV
• establishments ceiling cavity design)
• Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
• Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
• Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)
Notes:
• Please read the specifications and precautions carefully before installation
• Please do not use nails or sharp instruments to intall led strip on the object, use double-sided tape or glue or wall mounted on plywood
• Fixed led strip, you can not use acidic glue, it is recommended to use a neutral glue.
• This product is a constant voltage DC12V, make sure Power is right before installation, after installation, check the wiring is correct or not , so that avoid the product been burned
• This product is recommended use in parallel. when the length is more than five meters, the tail so be power to ensure the brightness is enough or uneven
